The inflation & vacuum pump could be applicable for vacuum packaging of household food, vacuum packaging and storage of high-elastic items. Also it is widely used in the production of product processing technology, and the vacuum pumping of air conditioning and fluorine. What's more, available for supporting industries such as medicine, chemical industry, scientific research and automation control with air source.
Besides, the pump could still be used for charging bicycles, balls, etc.
INQUIRY
SEND EMAIL

PRODUCT FEATURE

1. Oil Free, Piston Type and None Air Polluted.
2. The Gauge Can Show The Vacuum Degree When Vacuuming.
3. Low Noise, About 47db.
4. Turn Off the Pump When Stop Working.

PRODUCT PARAMETER

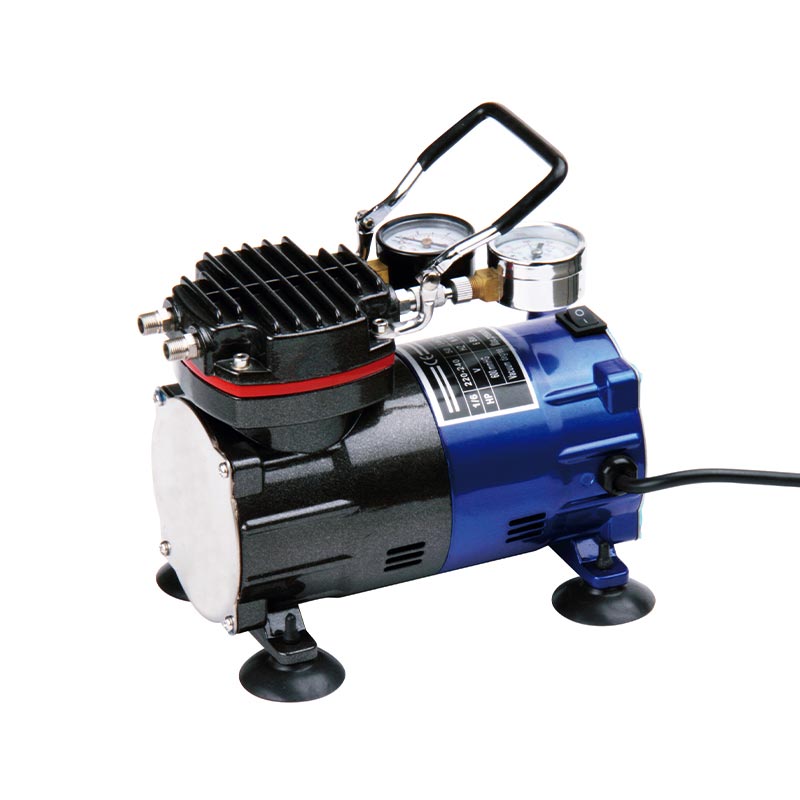

Product SKU:TC-88W

Specifications:
Power: 1/5"HP
Max Pressure: 6Bar/86Psi
Air Flow:23-25L/min
Vacuum Rate:600mmHG
Speed:1450rpm/50Hz  1700rpm/60Hz
Voltage: 220-240V/50Hz, 110-120V/60Hz, 220V/60Hz
Weight:3.5kg
Dimension: 255*135*170mm

Package Including:
1 x Single Cylinder Inflation & Vacuum Pump
1 x Air Filter
1 x Gauge

Package:
Carton Dimensions:50x29.5x51.5cm
PCS/CTN: 6
Net weight: 21KG
Grass weight: 24 KG

PRODUCT APPLICATION

<-------- Can Move Left or Right -------->



Food Vacuum Packaging



Vacuum Pumping of Air Conditioning



Laboratory Vacuum Pumping
